Technical Specification

THE B.E.W. RANGE

  • Chemical Drying Ovens : Designed for the Chemical, Pharmaceutical, Paint, Pigment, Dye stuff, Foodstuff, Plastic, and other related industries.
  • Bottle Drying Ovens : Designed for Pharmaceutical and foodstuff industries.
  • Hot Air Sterilising Ovens : Designed for Pharmaceutical and foodstuff industries.
  • Paint Stoving Ovens : Designed for Steel Furniture and related Utility Products industries.
  • Baking Ovens : Designed for Tin Printing and Electrical manufacturing industries.

Outstanding Features:

  • Sturdy construction
  • Superior thermal insulation
  • Steady uniform temperature guaranteed
  • Heaters interlocked with fan
  • Standard sizes available or custom-built to your specifications
  • Excellent after sales service

Technical Details:

Construction:

  • Fabricated from superior M.S. angle irons 2" x 2" x 1/4"
  • Sturdy M.S./ G.I. sheets used inside and outside and outside.
  • High grade glass wool, 2" thick, used between outer and inner sheets to facilitate working temperatures upto 110'c.
  • Special heat resistant aluminium paint coating on inside: protective red oxide primer and finishing coat of synthetic enamel paint on outside.
  • Convenient air inlet and outlet provided
  • Doors on hinges with spring loaded ball and catch type locking arrangement

Heating:

  • Electric or Finned steam heaters, or electric cum steam heaters, or thermic fluid heaters
  • All electric driers controlled thermostatically
  • Sarco control supplied on request
  • Heaters on alternate section to ensure uniform temperature
  • 2 and 4 truck driers fitted with in-beteen steam heaters
  • Normal working temperature: 110'c
  • Maximum working temperature: 300°c

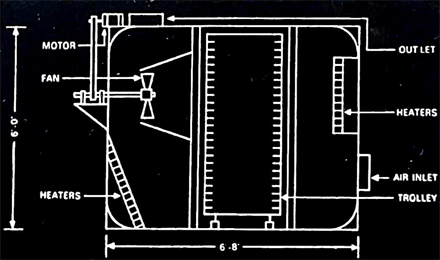

Air Circulation:

  • Forced draught, cross flow air circulation to ensure uniform temperature
  • Fans driven by V-belt and pulley. Arrangement by 30, 50N, 440 V AC motors
  • Baffles provided for minimum pressure drop

Trays and Trolleys:

  • Trays 32” x 16” x 1 1/4” fabricated from Aluminium, M.S. or Stainless Steel
  • Trolleys fabricated from M.S. sections on 4 wheels, 2 swivel type, for effortless movement.
  • Trolleys accommodate 48 trays.
Model Fan Motor H.P. No. of Motors Heating Load K.W. Steam Consumption at 30 psig.lbs. Working Size
W D H		 Overall Size App.Cap. Kgs/Batch
BD-12 0.5 1 3 25 2'-9" 1'-7” 2-8" 5'-7" 1'-9" 3'-0" 50-60
BD-24 0.5 1 6 45 2'-9" 2'-11” 2-8" 5'-7" 3'-3" 3'-4" 100-120
BD-48 1.0 1 12 60 3'-0" 2'-11” 6-0" 6'-10" 3'-3" 6'-2" 200-240
BD-96 1.0 2 24 80 6'-0" 2'-11” 6-0" 11'-2" 3'-3" 6'-2" 500-500
BD-192 2.0 2 48 120 6'-0" 6'-4” 6-0" 11'-2" 6'-4" 6'-2" 800-1000
