Features

  • Trial Facility Available
  • Less Floor Space Required
  • Reduction In Drying Time
  • Uniformity in Drying
  • Effecient & Safe Earthing Arrangement
  • Silver Lining For Effecient Earthing Available For Filter Bag
  • Pneumatic Lifting, Locking For Product Container
  • Automatic Bag Shaking Arrangement
  • Noise Level Reduction with Silencer Available
  • Sunstantial Energy Saving
  • Saving Labour Cost
  • Additional Product Container Enhances100% Capacity

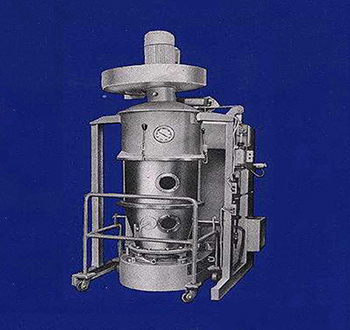

Fluid Bed Dryers

Bombay Engineering Works manufacture a super-efficient range of Fluid Bed Dryers to meet the vital drying needs of almost every major industry. And almost every major industry uses them. Which is only natural considering the stringent quality-control standards and technological sophistication employed in their manufacture.

Extensively used by Pharmaceuticals granules, bulk drugs, dyes & chemicals, food products & starch derivatives, pesticides, phytochemicals, catalystsindustries

Here now, are details of the entire range. Study them and discover for yourself the superior features they offer and how best these features can be turned to your profit.

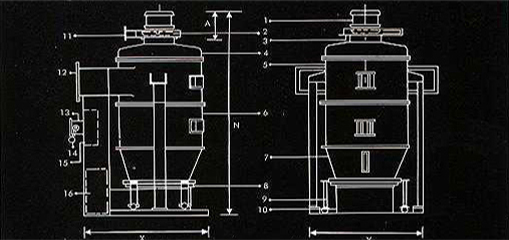

  1. Electric Motor
  2. Impeller
  3. Blowing Scroll
  4. Top Dome
  5. Discharge Bag Chamber
  6. Retarding Chambe
  7. Product Container
  8. Trolley Platform
  9. Trolley
  10. Jack Chamber
  11. Air Outlet
  12. Excess Pressure Flaps
  13. Air Inlet
  14. Inlet Air Control
  15. Inlet Filters
  16. Air Heater
Capacity of Drier in Kgs at 0.6 Kg./Lt, Bulk Density   10 20 30 60 100 150 200
Working Capacity of Product Container in Litres   16 39 57 127 189 354 437
Total Volume of Product Container in Litres   28 66 95 213 316 590 730
Blower Motor KW   1.5 2.3 3.7 7.5 11 15 18.5
Healing Capacity kW   6 12 18 36 60 90 120
Steam Consumption Kgs./Hr   12 25 35 70 120 160 220
Heating Capacity in Kel./Hr.   3,870 7,740 11,610 23,220 38,700 58,050 77,400
Dimensions Approx, in mm. 'X' 610 920 1370 1470 1730 2000 2100
'Y' 760 810 1070 1250 1500 1800 1900
'A' 360 410 560 610 800 1050 1050
'N' 1300 1420 1930 2430 2800 3150 3350
