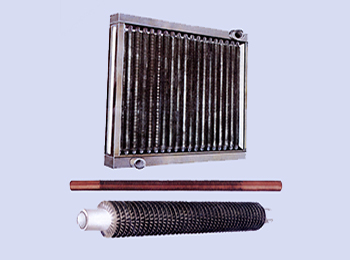

Finned Pipes

Home Products Finned Pipes

Mainly required by various Industries like:

Petro chemicals
Oil Refineries Textiles
Power Houses
Marine Industries Chemicals & Dye Stuffs
Pharmaceuticals Food
Wood
Leather and Paper Industries, etc.

Table - 1 Surface Area / Weight Per Foot (Metre) Length of Copper Finned Pipes

Tube		Fin	Approx Finned OD		Area and Weight of Tube Plus Fin
Tube		Fin	Approx Finned OD		48 Fins/Ft 158 Fins/M				50 Fins/Ft 197 Fins/M			72 Fins/Ft 237 Fins/M			96 Fins/Ft 316 Fins/M
OD INS MM	S.W.G	S.W.G	Tole INS + 1MM MM		Sq. ft. /FT Sq.M. /M.			Kg/M	Sq. ft. /FT Sq.M. /M.		Kg/M	Sq. ft. /FT Sq.M. /M.		Kg/M	Sq. ft. /FT Sq.M. /M.		Kg/M
1/2 12.7	20	25	0.98 1.10 25 29		0.62 0.89 0.19 0.27			0.53 0.60	0.72 1.05 0.22 0.32		0.58 0.87	0.85 1.27 0.26 0.38		0.63 0.75	1.12 1.64 0.34 0.50		0.73 0.89
5/8 15.9	20	28	1.26 1.42 32 36		0.98 1.34 0.30 0.41			0.73 0.86	1.18 1.61 0.38 0.49		0.81 0.98	1.41 1.89 0.43 0.58		0.89 1.10	1.84 2.49 0.58 0.78		0.07 1.34
3/4 19.1	18	28	1.54 1.73 39 44		1.45 1.99 0.44 0.61			1.11 1.29	1.78 2.42 0.54 0.74		1.24 1.47	2.09 2.88 0.64 0.88		1.37 1.64	2.73 3.76 0.83 1.15		1.63 1.90
1 25.4	18	28	1.77 1.97 45 49		1.71 2.17 0.62 0.66			1.41 1.69	2.07 2.66 0.63 0.81		1.58 1.87	2.47 3.12 0.75 0.95		1.71 2.05	3.19 4.08 0.97 1.24		2.01 2.41

Table - 2 Surface Area / Weight Per Foot (Metre) Length of Steel Finned Pipes

Pipe	Fin	Approx Finned OD		Area and Weight of Tube Plus Fin
Pipe	Fin	Approx Finned OD		48 Fins/Ft 158 Fins/M				50 Fins/Ft 197 Fins/M			72 Fins/Ft 237 Fins/M			96 Fins/Ft 316 Fins/M
BORE NB INS OD MM	S.W.G.	Tole INS + 1MM MM		Sq. ft. /FT Sq.M. /M.			Kg/M	Sq. ft. /FT Sq.M. /M.		Kg/M	Sq. ft. /FT Sq.M. /M.		Kg/M	Sq. ft. /FT Sq.M. /M.		Kg/M
1/2 21.4	28	1.61 1.77 41 45		1.54 1.96 0.47 0.60			1.66 1.89	1.86 2.38 0.57 0.73		1.84 2.12	2.22 2.84 0.68 0.87		2.02 2.36	2.87 3.72 0.88 1.14		2.38 2.83
3/4 26.9	28	1.85 1.97 47 50		1.79 2.22 0.55 0.68			2.23 2.45	2.15 2.67 0.66 0.82		2.43 2.71	2.54 3.20 0.78 0.98		2.64 2.97	3.33 4.15 1.02 1.27		3.04 3.50
1 33.8	24	2.28 2.64 58 67		2.58 3.82 0.79 1.17			3.49 4.29	3.16 4.67 0.97 1.43		3.85 4.85	3.72 5.55 1.14 1.70		4.23 5.43	4.83 7.28 1.48 2.23		4.97 6.57
1 1/4 42.5	22	2.60 2.91 66 74		3.00 4.28 0.92 1.31			4.88 6.02	3.62 5.22 1.11 1.60		5.44 6.88	4.28 6.17 1.31 1.89		6.03 7.73	5.58 8.09 1.71 2.48		7.18 9.45
1 1/2 2.91	22	2.83 3.15 72 80		3.29 4.64 1.01 1.42			5.75 6.96	3.98 5.68 1.22 1.74		6.37 7.88	4.70 6.72 1.44 2.06		7.01 8.32	6.07 8.78 1.86 2.69		8.26 10.68

Table - 3 Surface Area / Weight Per Foot (Metre) Length of Steel Finned Tubes

Tube		Fin	Approx Finned OD		Area and Weight of Tube Plus Fin
Tube		Fin	Approx Finned OD		48 Fins/Ft 158 Fins/M				60 Fins/Ft 197 Fins/M			72 Fins/Ft 237 Fins/M			96 Fins/Ft 316 Fins/M
OD INS MM	S.W.G	S.W.G	Tole INS + 1MM MM		Sq. ft. /FT Sq.M. /M.			Kg/M	Sq. ft. /FT Sq.M. /M.		Kg/M	Sq. ft. /FT Sq.M. /M.		Kg/M	Sq. ft. /FT Sq.M. /M.		Kg/M
1/2 12.7	14/16	24/26	0.98 1.14 26 29		0.62 0.89 0.19 0.27			0.91 1.07	0.72 1.05 0.22 0.32		0.98 0.18	0.85 1.27 0.26 0.38		1.05 1.29	1.12 1.64 0.34 0.50		1.20 1.52
5/8 15.9	14/16	24/26	1.26 1.42 32 36		0.98 1.34 0.30 0.41			1.27 1.48	1.18 1.61 0.36 0.49		1.39 1.65	1.41 1.89 0.43 0.38		1.52 1.82	1.84 2.49 0.56 0.76		1.75 2.17
3/4 19.1	14/16	24/26	1.36 1.53 35 39		1.08 1.45 0.33 0.44			1.47 1.69	1.31 1.78 0.49 0.54		1.61 1.87	1.55 2.09 0.57 0.64		1.75 2.06	2.00 2.73 0.61 0.83		2.02 2.44
1 25.4	14/16	24/26	1.77 1.93 45 49		1.71 2.17 0.52 0.66			2.11 2.38	2.07 2.66 0.63 0.81		2.33 2.66	2.47 3.12 0.75 0.95		1.55 2.95	3.19 4.08 0.97 1.24		2.98 3.52
